Sistema

Design: Studio Cappellini

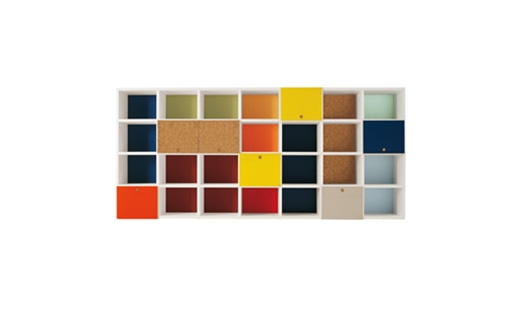

Sistema is a family of combinable elements, 4 centimetres thick; sides with different height, 30 cm. and 45 cm. depth, bases, tops and shelves can create containers suitable for all situations and in more various typologies.

The compositions can assemble leaf or flap doors of 2 cm. thick in wood, or sliding doors both 2 and 4 cm. thick. Leaf doors can be also with mirror and aluminium frame. All elements can be lacquered in matt colours or polish of Cappellini collection or they can be made in wood; for the uprights, shelves and backs it is foreseen also melamine finishing, desert colour.

Sistema can be completed with wall panels, shelves, boards and benches with metal base in different dimensions and thick, or with panels just equipped with shelves, power points and fairlead rings, or some more with containers, drawers or doors. Finally, the handles can be in chromed metal, or lacquered in the different colours of collection, or embedded only for wood versions.

Finishings:
Backs, uprights, shelves - Melamine desert
Uprights and elements for compositions panel and elements for compositions benches, boards - macroter lacquer, matt/ polish lacquer, matt/ polish lacquer - extra, wood
Benches - stainless steel
CD/ DVD holder - aluminium
Front Elements - macroter lacquer, matt/ polish lacquer, matt/ polish lacquer - extra, wood
Leaf doors - sliding doors - natural mirror
Sliding doors - blue mirror-smoke grey mirror

Macroter Lacquer - white, magnolia, desert, mud, red, fog, dark grey, cloud. anthracite. Wood - natural oak/ oak wengé stained. Matt/ polish lacquer - white, magnolia, butter, beige, desert, anthracite, black, light grey. Matt/ polish lacquer extra - sand, mustard, fog, dark grey, aluminium (matt only), pink, hide red, bordeaux, mud, forest green, chocolate, chestnut brown, acid green, middle green, powder green, dark green, yellow, sun yellow, mandarin, mango, orange, cherry red, red, fuchsia, artic, cloud, turquoise, blue india, ultramarine blue, violet blue, blue indigo, China blue.

Sistema Dimensions:
Terminal and middle upright thickness 4cm
D 30/ 45cm H 132/ 164/ 196/ 228/ 260cm | D 11.8/ 17.72" H 51.97/ 64.57/ 77.17/ 89.76/ 102.36"

Top/ base thickness 4cm
W 41/ 56/ 86/ 116cm D 30/ 45cm | W 16.14/ 22.05/ 33.86/ 45.67" D 11.8/ 17.72"

Movable one-faced shelf/ Fixed one-faced shelf thickness 4cm
W 41/ 56/ 86/ 116cm D 28cm | W 16.14/ 22.05/ 33.86/ 45.67" D 11.02"

Movable two-faced shelf/ fixed two-faced shelf thickness 4cm
W 41/ 56/ 86/ 116cm D 30cm | W 16.14/ 22.05/ 33.86/ 45.67" D 11.8"

Movable one-faced shelf/ Fixed one-faced shelf thickness 4cm
W 41/ 56/ 86/ 116/ 176cm D 43cm | W 16.14/ 22.05/ 33.86/ 45.67/ 69.29" D 16.93"

Movable two-faced shelf/ fixed two-faced shelf thickness 4cm
W 41/ 56/ 86/ 116/ 176cm D 43cm | W 16.14/ 22.05/ 33.86/ 45.67/ 69.29" D 16.93"

Backs thickness 1.2cm
W 41cm H 44/ 60/ 92/ 124/ 156/ 188/ 220/ 252cm | W 16.14" H 17.32/ 23.62/ 36.22/ 48.82/ 61.42/ 74.02/ 99.21"
W 56/ 86/ 116cm H 28/ 44/ 60/ 92/ 124/ 156/ 188/ 220/ 252cm | W 22.05/ 33.86/ 45.67" H 11.02"/ 17.32/ 23.62/ 36.22/ 48.82/ 61.42/ 74.02/ 99.21"
W 176cm H 124/ 156/ 188cm | W 69.29" H 48.82/ 61.42/ 74.02"

Leaf doors thickness 2cm
W 45cm H 48/ 64/ 96/ 128/ 160/ 192/ 224cm | W 17.72" H 18.9/ 25.2/ 37.8/ 50.39/ 63/ 75.59/ 88.19"
W 60cm H 32/ 48/ 64/ 96/ 128/ 160/ 192/ 224cm | W 23.62" H 12.6/ 18.9/ 25.2/ 37.8/ 50.39/ 63/ 75.59/ 88.19"

Natural mirror door thickness 2cm
W 48/ 60cm H 128/ 160/ 192/ 224cm | W 18.9/ 23.62" H 50.39/ 63/ 75.59/ 88.19"

Flap door thickness 2cm
W 90/ 120/ 180cm H 32/ 48cm | W 35.43/ 47.24/ 70.87" H 12.6/ 18.9"

Wooden sliding door thickness 2cm
W 45/ 60/ 90/ 120cm H 132/ 164cm | W 17.72/ 23.62/ 35.43/ 47.24" H 51.97/ 64.57"

Wooden sliding door thickness 4cm
W 47/ 92cm H 164/ 196/ 228/ 260cm | W 18.5/ 38.22" H 64.57/ 77.17/ 89.76/ 102.36"
W 122cm H 164/ 196/ 228cm | W 48.03" H 64.57/ 77.17/ 89.76"
W 182cm H 164/ 196cm | W 71.65" H 64.57/ 77.17"

Sliding door with mirror thickness 3.5cm
W 122/ 182cm H 164/ 196cm | W 4803/ 7165" H 64.57/ 77.17"

Set of 2 drawers/ drawers/ high drawers D 45cm
W 60/ 90/ 120cm H 32cm | W 23.62/ 35.43/ 47.24" H 12.6"

Set of 3 drawers/ set of 2 drawers D 45cm
W 60/ 90/ 120cm H 48cm | W 23.62/ 35.43/ 47.24" H 18.9"

2 drawers in line with upright D 45cm
W 56/ 86/ 116cm H 44cm | W 22.05/ 33.86/ 45.67" H 17.32"

Aluminium CD/DVD holder D 43cm
W 60/ 90/ 120cm H 24/ 32cm | W 23.62/ 35.43/ 47.24" H 9.45/ 12.6"

Bands for corner
H 196/ 228/ 260cm | H 77.17/ 89.76/ 102.36"

Freestanding container D 38cm with 1 total pull-out drawer(s)
W 50/ 100cm H 18/ 24cm | W 19.69/ 39.37" H 7.09/ 9.45"

Freestanding container D. 38 with flap door
W 50cm H 36cm | W 19.69" H 14.17"
